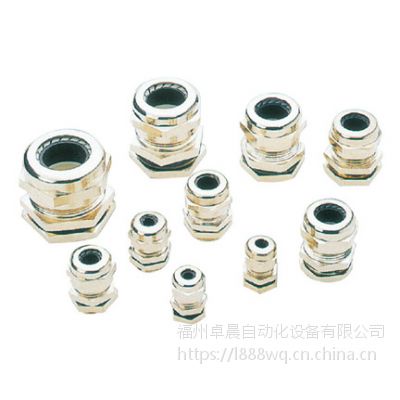

| 加工定制：是 | 型号：M12×1.5 M14×1.5 M16×1.5 M18×1.5 M20×1.5 M22×1.5 M2 | 材质：黄铜 |
| 品牌：上海雷普 | 规格：M12×1.5 M14×1.5 M16×1.5 M18×1.5 M20×1.5 M22×1.5 M2 | 公称直径：12mm |
| 连接型式：螺纹 | 适用范围：电缆防水夹紧接头 |
材料 | 黄铜镀镍 |
夹紧件 | 尼龙(PA) |
密封件材料 | 丁腈橡胶 |
温度范围 | -40℃到+100℃，短时可达+120℃ |
防护等级 | IP68 |
型号 普通pg制螺纹 | PG7 | PG9 | PG11 | PG13.5 | PG16 | PG21 | PG29 | PG36 | PG42 | PG48 |
卡口范围mm | 3-6 | 4-8 | 6-10 | 6-10 | 8-12 | 13-18 | 18-25 | 25-32 | 32-38 | 37-44 |
AG外径mm | 12.5 | 15.2 | 18.6 | 20.4 | 22.5 | 28.3 | 37 | 47 | 54 | 59.3 |
GLmm | 6 | 7 | 8 | 8 | 8 | 11 | 11 | 13 | 14 | 14 |
Hmm | 19 | 20 | 21 | 22 | 23 | 25 | 29 | 35 | 37 | 38 |
型号 普通公制制螺纹 | M12×1.5 | M14×1.5 | M16×1.5 | M18×1.5 | M20×1.5 | M22×1.5 | M24×1.5 | M27X2 |
卡口范围mm | 3-6 | 3-6 | 4-8 | 6-10 | 6-10 | 8-12 | 10-14 | 13-18 |
AG外径mm | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 |
GLmm | 6 | 6 | 7 | 8 | 8 | 8 | 10 | 11 |
Hmm | 19 | 19 | 20 | 21 | 22 | 22 | 23 | 25 |
型号 普通公制制螺纹 | M30X2 | M33X2 | M36X2 | M42X2 | M48X2 | M54X2 | M60X2 | M64X2 |
卡口范围mm | 13-18 | 15-22 | 18-25 | 22-28 | 25-32 | 32-38 | 37-44 | 37-44 |
AG外径mm | 30 | 33 | 36 | 42 | 48 | 54 | 60 | 64 |
GLmm | 11 | 11 | 11 | 12 | 13 | 14 | 14 | 14 |
Hmm | 25 | 28 | 29 | 29 | 35 | 37 | 38 | 38 |
型号 | 订货号 |
PG7 | 5014.021 |
PG9 | 5014.022 |
PG11 | 5014.023 |
PG13.5 | 5014.024 |
PG16 | 5014.025 |
PG21 | 5014.026 |
PG29 | 5014.027 |
PG36 | 5014.028 |
PG42 | 5014.029 |
PG48 | 5014.030 |
型号 | 订货号 |
M12×1.5 | 5014.046 |
M14×1.5 | 5014.047 |
M16×1.5 | 5014.048 |
M18×1.5 | 5014.049 |
M20×1.5 | 5014.050 |
M22×1.5 | 5014.051 |
M24×1.5 | 5014.052 |
M27×2 | 5014.053 |
M30×2 | 5014.054 |
M33×2 | 5014.055 |
M36×2 | 5014.056 |
M42×2 | 5014.057 |
M48×2 | 5014.058 |
M54×2 | 5014.059 |
M60×2 | 5014.060 |
M64×2 | 5014.061 |
