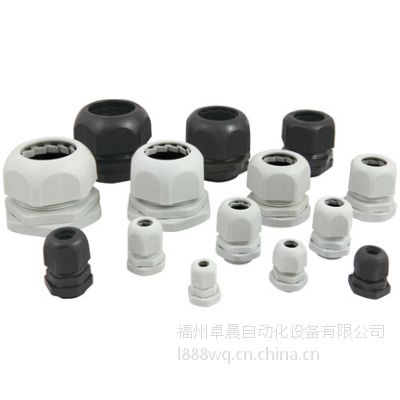

| 加工定制：是 | 型号：PG7 PG9 PG11 PG13.5 PG16 PG21 PG29 PG36 PG42 PG48 | 材质：塑料 |
| 品牌：Stanley/史丹利 | 规格：12.5 | 公称直径：12.5mm |
| 连接型式：螺丝 | 适用范围：电缆 |
丁腈橡胶 | |
防护等级 | IP68 |
供货颜色 | 灰色、黑色(需订货) |
型号 普通pg制螺纹 | PG7 | PG9 | PG11 | PG13.5 | PG16 | PG21 | PG29 | PG36 | PG42 | PG48 |
卡口范围mm | 3-6.5 | 4-8 | 5-10 | 6-12 | 10-14 | 13-18 | 18-25 | 22-32 | 32-38 | 37-44 |
AG外径mm | 12.5 | 15.2 | 18.6 | 20.4 | 22.5 | 28.3 | 37 | 47 | 54 | 59.3 |
GLmm | 8 | 8 | 8 | 9 | 10 | 11 | 11 | 13 | 13 | 14 |
Hmm | 20 | 22 | 24 | 27 | 28 | 30 | 38 | 45 | 47 | 47 |
型号 普通公制制螺纹 | M12×1.5 | M14×1.5 | M16×1.5 | M18×1.5 | M20×1.5 | M22×1.5 | M24×1.5 | M25×1.5 |
卡口范围mm | 3-6.5 | 3-6 | 4-8 | 6-10 | 6-12 | 10-14 | 10-14 | 13-18 |
AG外径mm | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 25 |
GLmm | 8 | 6 | 8 | 8 | 9 | 9 | 10 | 10 |
Hmm | 22 | 19 | 26 | 21 | 28 | 22 | 23 | 35 |
型号 普通公制制螺纹 | M27X1.5 | M30X1.5 | M32X1.5 | M36X1.5 | M40X1.5 | M50X1.5 | M63X1.5 | |
卡口范围mm | 13-18 | 13-18 | 16-21 | 18-25 | 22-32 | 32-38 | 37-44 | |
AG外径mm | 27 | 30 | 32 | 36 | 40 | 50 | 63 | |
GLmm | 11 | 11 | 11 | 11 | 14 | 14 | 14 | |
Hmm | 25 | 25 | 34 | 29 | 42 | 49 | 50 |
